| AI Summary |
| Automatic panel benders are the preferred bending solution for electrical enclosure and switchgear manufacturers because they deliver consistent, scratch-free bends with tight angular tolerances on pre-punched sheets. |
| Key advantages over press brakes include: single-operator operation, no manual repositioning, automatic tool change, and the ability to make sequential complex bends (boxes, channels, U-profiles) without scratch or deformation. |
| Electrical enclosure manufacturers in India, UAE, and GCC markets are switching to CNC automatic panel benders to meet IEC/ISO dimensional tolerances and reduce rework rates below 0.5%. |
| Bhavya Machine Tools supplies automatic panel benders suitable for producing MCC panels, DB boxes, cable trays, bus duct housings, and LT/HT switchgear enclosures. |
Introduction: The Electrical Enclosure Manufacturing Challenge
Electrical enclosures – from distribution board (DB) boxes and motor control centres (MCCs) to high-voltage switchgear cabinets – must meet precise dimensional tolerances, clean internal surfaces, and consistent angular geometry to ensure safe assembly, IP-rated sealing, and compliance with IEC 61439, IEC 62208, and IS 13947 standards.
Traditional press brake bending, while versatile, poses critical challenges in this application: each bend requires manual part repositioning, increasing the risk of scratches on pre-painted or pre-coated sheets, angular inconsistencies between bends, and high operator skill dependency.
The automatic CNC panel bender eliminates all of these issues. This article explains how automatic panel benders work in the context of electrical enclosure manufacturing, what productivity and quality gains they deliver, and how to select the right machine for your production needs.

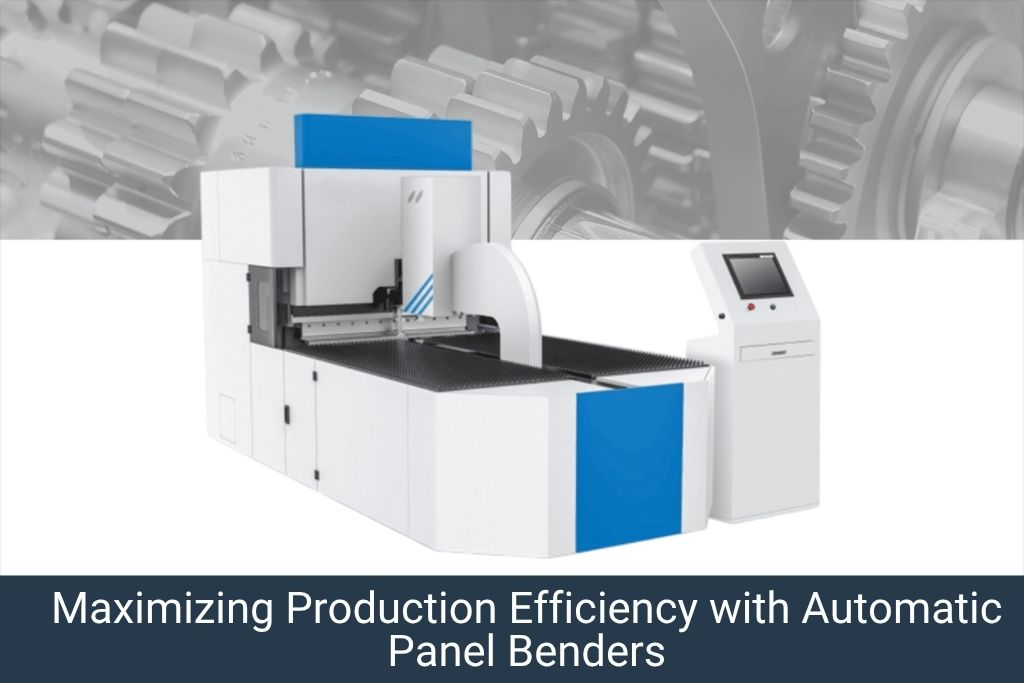

What Is an Automatic Panel Bender?
An automatic panel bender is a CNC sheet metal bending machine where the bending tool (blade) moves around the sheet – rather than the sheet being repositioned for each bend. The sheet is held by a blank holder, and the upper and lower bending blades execute positive and negative bends in sequence, automatically, under CNC control.
This fundamentally different bending mechanism means:
- The sheet surface never contacts a press brake punch or die during bending – eliminating scratches.
- All bends on a component are executed in a single setup – no manual repositioning.
- Complex profiles (box shapes, U-channels, Z-profiles, multiple flanges) are completed in seconds.
- A single operator can run the machine – loading flat blanks and unloading finished components.
Why Electrical Enclosure Manufacturers Choose Automatic Panel Benders
Scratch-Free Bending on Pre-Painted & Pre-Coated Sheets
Electrical enclosure manufacturers frequently work with pre-painted CRCA steel, pre-galvanised sheets, and powder-coated blanks. Press brake tooling inevitably leaves witness marks or scratches on coated surfaces, requiring expensive touch-up painting.
The automatic panel bender’s blank holder grips the sheet on the clamping edge, and the bending blades never contact the sheet face. This is critical for IP54/IP65 enclosure manufacturers who cannot afford to compromise surface finish.
Consistent Angular Accuracy Across All Bends
IEC 61439 compliant switchgear enclosures require angular tolerances typically within ±0.5°. On a press brake, maintaining this across 8-12 bends per enclosure side requires an experienced operator and frequent re-checks. On an automatic panel bender, the CNC system controls every bend angle independently, consistently achieving ±0.2° across all bends.
High Throughput for Medium to High Volume Production
A standard 19-inch rack enclosure front panel with 6 bends takes approximately 4-6 minutes on a press brake (including repositioning). The same part runs in under 90 seconds on an automatic panel bender. For a production volume of 200 enclosures per day, this translates to 10+ additional productive hours per shift.
Ability to Bend Pre-Punched & Pre-Drilled Sheets
Electrical enclosures typically have punched holes, cable entry knockouts, and mounting slots before bending. Press brakes require careful operator skill to avoid bending errors around these features. The automatic panel bender’s CNC system accounts for these features automatically, maintaining dimensional accuracy regardless of hole patterns.
Single-Operator Productivity
Panel benders require only one operator to load, monitor, and unload parts. This is a significant labour cost advantage compared to press brake operations that typically require two operators for larger enclosure panels (one to hold, one to operate the foot pedal).
Applications: Types of Electrical Enclosures Made with Automatic Panel Benders
| Enclosure Type | Typical Material | Key Bending Requirements |
| Distribution Board (DB) Box | 1.5-2mm CRCA / galvanised steel | Box profile, internal flanges, door frame |
| Motor Control Centre (MCC) Panel | 2-3mm CRCA steel | Deep U-channels, multi-flange sides, cable entries |
| LT Switchgear Enclosure | 2-3mm CRCA / SS 304 | Large flat sides, tight corner radii, busbar support brackets |
| Cable Tray & Ladder | 1.5-2mm GI / CRCA | Continuous U-channel, side flanges, return lip |
| Bus Duct Housing | 1.5-2mm aluminium / CRCA | Tight-tolerance rectangular channel, sealed seam flanges |
| Server Rack / 19-inch Cabinet | 1.5-2mm CRCA cold rolled | Precise rack-unit spacing, front/rear frames, side panels |
| Custom Control Panel Enclosure | 1-3mm various metals | Complex multi-bend profiles per customer drawing |
Automatic Panel Bender vs CNC Press Brake for Electrical Enclosures
| Parameter | Automatic Panel Bender | CNC Press Brake |
| Surface scratching | None – no tooling contact on face | Common without protective film |
| Bends per setup | All bends in one setup | One bend per setup (repositioning needed) |
| Angular consistency | ±0.2° (CNC-controlled each bend) | ±0.5°-1° (depends on operator) |
| Pre-punched sheet handling | Fully automatic, CNC-compensated | Requires skilled manual positioning |
| Operator requirement | 1 operator | 1-2 operators |
| Typical cycle time (6-bend panel) | 60-90 seconds | 4-8 minutes |
| Part changeover time | 2-5 minutes (CNC program recall) | 10-30 minutes (tool change + setup) |
| Suitable sheet thickness | 0.5-3mm (standard), up to 4mm (heavy) | 0.5-12mm+ (wider range) |
What Our Customers Say
“Our production speed has improved ever since we got a Bhavya machine. It’s smooth, durable, and works exactly as promised.”
Arti Mishra On Google
Key Specifications to Look for in a Panel Bender for Switchgear Manufacturing
- Working length: Match to your largest enclosure panel – typically 2000mm, 2500mm, or 3000mm
- Maximum sheet thickness: Typically 1.5-3mm CRCA for most enclosure work
- Bending angle range: +135° to -135° to accommodate all standard enclosure profiles
- Angular accuracy: ±0.2° or better across full working length
- CNC controller: Should support DXF import and auto-program generation from 2D drawings
- Automatic blank holder: With adjustable clamping force to avoid marking soft coated sheets
- Tool configuration: Segmented upper and lower blades for flexible profile capability
- Integration capability: Compatible with fiber laser cutting or punching line for lights-out production
Email Us
Frequently Asked Questions on Automatic Panel Bender for Electrical Enclosures
Can an automatic panel bender handle galvanised steel sheets for electrical enclosures?
Yes. Automatic panel benders are specifically suited to galvanised and pre-coated sheets because they do not scratch the zinc or coating layer during bending. The blank holder force is adjustable to prevent marking on delicate surfaces.
What is the minimum flange height achievable on a panel bender for enclosure work?
Most automatic panel benders can achieve minimum flange heights of 6-10mm depending on the blade configuration and sheet thickness. For DB box and cable tray manufacturing, standard flanges of 15-25mm are easily achievable.
How quickly can a new operator learn to program a CNC panel bender for enclosure production?
With a modern CNC panel bender featuring graphical programming and DXF import, a new operator with basic CNC experience can be producing parts independently within 1-2 weeks of training.
Can the panel bender make the internal flanges and return lips required on enclosures?
Yes. This is one of the key advantages of panel benders. The positive and negative bending blades can produce inward (return) flanges and complex multi-directional profiles that would be very difficult to produce on a press brake without custom tooling.
Which panel bender model does Bhavya Machine Tools recommend for electrical enclosure manufacturing?
Bhavya Machine Tools offers automatic panel benders in 2000mm, 2500mm, and 3000mm working lengths, with sheet capacity up to 3mm CRCA. For electrical enclosure work, the 2500mm model with segmented tooling is most popular. Contact us at https://www.bhavyamachinetools.com for a detailed specification sheet and production video.
Conclusion
For electrical enclosure and switchgear manufacturers, the automatic CNC panel bender is not simply an upgrade to the press brake – it is a fundamentally different and superior manufacturing process. The combination of scratch-free operation, single-setup multi-bend capability, high throughput, and CNC-precision makes it the machine of choice for DB box, MCC panel, switchgear cabinet, and cable tray production.
