- Fiber laser cutting machines deliver the ±0.01 mm tolerances required for aerospace-grade components.
- They efficiently process titanium, Inconel, aluminum alloys (6061/7075), and stainless steel used in aircraft manufacturing.
- Fiber lasers consume 3× less energy than CO2 lasers and require zero consumable gases for most metals.
- Key aerospace applications: fuselage panels, turbine shrouds, brackets, heat shields, and structural ribs.
- Bhavya Machine Tools supplies certified fiber laser cutting machines suitable for AS9100-regulated facilities.

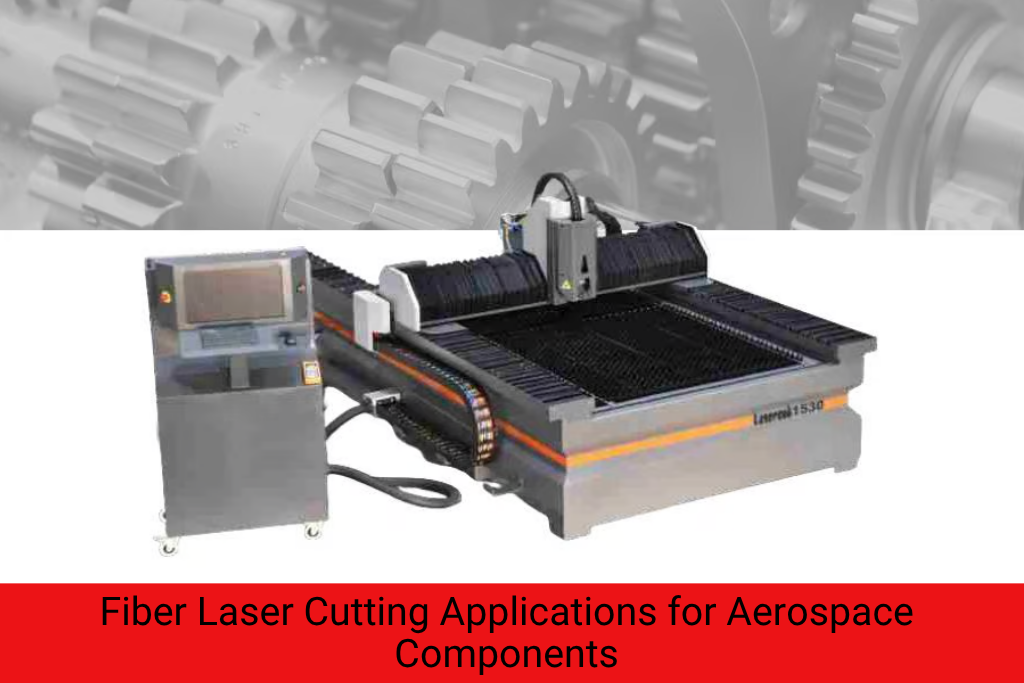

Introduction: Why Aerospace Manufacturing Demands Precision Cutting
The aerospace industry operates under some of the most stringent quality and precision requirements of any manufacturing sector. Every component – from a fuselage bracket to a turbine heat shield – must conform to tight dimensional tolerances, often within ±0.01 mm to ±0.05 mm. Traditional cutting methods such as plasma cutting or waterjet cannot consistently achieve the surface finish quality and geometric accuracy that aviation-grade components demand.
Fiber laser cutting machines have emerged as the technology of choice for aerospace sheet metal fabrication. With cutting speeds up to 40 m/min, beam spot sizes below 100 µm, and the ability to handle exotic aerospace alloys without distortion, fiber lasers are redefining precision manufacturing in the aviation, defense, and space sectors.
This article explores how fiber laser cutting machines are used across aerospace component manufacturing – covering materials, applications, tolerances, machine selection, and operational best practices.
Email Us
What Makes Fiber Laser Cutting Ideal for Aerospace Applications?
Ultra-High Precision and Repeatability
Fiber laser cutting machines produce a focused beam with a wavelength of 1,064 nm – approximately 10× shorter than a CO2 laser. This results in a smaller kerf width (as narrow as 0.1-0.2 mm) and dramatically improved edge quality. In aerospace, where components often interface with precision assemblies, this level of repeatability is not optional – it is mandatory.
Compatibility with Aerospace-Grade Materials
Minimal Heat-Affected Zone (HAZ)
Aerospace alloys like titanium and Inconel are highly sensitive to thermal distortion. Fiber lasers concentrate energy in a precise focal point, minimizing the heat-affected zone. This preserves the metallurgical properties of the base material – critical for parts that will endure extreme stress cycles, vibration, and temperature differentials in service.
Non-Contact Cutting – No Tool Wear
Unlike milling or punching, fiber laser cutting is non-contact. There is no mechanical force applied to the workpiece, which eliminates tool deflection, burring from dull tooling, and the risk of micro-cracks at cut edges. This is especially important for thin-gauge titanium and aluminum sheets used in skin panels.
Our Other Product
Tube Fiber Laser Cutting MachineKey Aerospace Components Manufactured Using Fiber Laser Cutting
- Fuselage skin panels and structural ribs (aluminum alloys)
- Engine nacelle brackets and heat shields (Inconel / stainless steel)
- Wing spars, ribs, and access panels (aluminum 7075)
- Hydraulic line brackets and clamps (titanium Ti-6Al-4V)
- Avionics enclosures and EMI shielding panels (stainless steel / aluminum)
- Combustion chamber liners and turbine shrouds (Inconel 718)
- Satellite frame components and structural honeycomb supports
- Landing gear support brackets (high-strength steel / titanium)
Fiber Laser vs CO2 Laser for Aerospace Manufacturing: Key Differences
For aerospace metal fabrication, fiber laser cutting machines are unambiguously the superior choice in terms of cut quality, processing speed, energy consumption, and long-term operating cost.
What Our Customers Say
“Our production speed has improved ever since we got a Bhavya machine. It’s smooth, durable, and works exactly as promised.”
Arti Mishra On Google
Tolerances and Quality Standards in Aerospace Laser Cutting
Aerospace components cut with fiber lasers are typically held to the following tolerances:
- Dimensional accuracy: ±0.01 mm to ±0.05 mm
- Perpendicularity: ≤0.1 mm per 10 mm thickness
- Roughness (Ra): 1.6-3.2 µm on cut edges for most alloys
- Flatness: ≤0.2 mm over 500 mm span
Quality systems governing aerospace fabrication include AS9100 Rev D (quality management), NADCAP (special processes), AMS 2411 (laser cutting process standards), and MIL-SPEC requirements for defense components. Bhavya Machine Tools’ fiber laser systems are configured to support these compliance requirements with closed-loop feedback positioning and data logging.
How to Select the Right Fiber Laser Cutting Machine for Aerospace Work
Power Rating
Thin aerospace sheet (0.5-3 mm titanium/Inconel): 1,500-3,000W is sufficient. For aluminum panels up to 12 mm, 4,000-6,000W provides optimal cutting speed. For structural steel components, 6,000-12,000W gives the best throughput.
Positioning System
Aerospace work requires a servo-driven linear drive system – not rack and pinion. Look for machines with ball-screw or linear motor drives offering repeatability of ±0.01 mm or better. An enclosed machine with controlled ambient temperature improves thermal stability.
Nozzle and Assist Gas Control
Titanium requires nitrogen (N2) cutting to prevent oxidation at the cut edge. Aluminum benefits from nitrogen for clean edges. Stainless steel can use nitrogen or compressed air depending on finish requirements. The machine should support automatic gas switching and pressure control from the CNC panel.
Cutting Head Technology
Auto-focus cutting heads (capacitive height sensing) are essential for maintaining constant focal length on non-flat aerospace sheet. A cutting head with collision protection prevents costly damage when processing complex nested programs.
Best Practices for Laser Cutting Aerospace Components
- Program nesting carefully – maximize material utilization on expensive aerospace alloys.
- Use nitrogen assist gas for titanium, Inconel, and aluminum to ensure oxide-free cut edges.
- Set pierce type to ‘ramp pierce’ on thick materials to prevent material blow-out.
- Validate first articles against engineering drawings using CMM or optical comparator.
- Maintain beam quality records – a degraded collimator or focus lens will widen the kerf and fail tolerances.
- Keep the cutting table clean; metal spatter can elevate thin sheets and cause focal shift.
- Store and handle aerospace sheet per material spec (titanium especially must avoid contact with ferrous tools).
Our Other Product
Board One Fiber Laser Cutting MachineBhavya Machine Tools Advantage
Bhavya Machine Tools (https://www.bhavyamachinetools.com) offers fiber laser cutting machines engineered for precision metalworking applications including aerospace, defense, and medical device manufacturing. Our machines feature auto-focus cutting heads, nitrogen-compatible gas circuits, and CNC controllers with sub-micron interpolation – all backed by our pan-India service network and export support to UAE and USA.
Frequently Asked Questions on Fiber Laser Cutting Machine
Can a fiber laser cutting machine cut titanium for aerospace parts?
Yes. Fiber lasers efficiently cut titanium alloys (Ti-6Al-4V is most common in aerospace) up to 12 mm thick using nitrogen assist gas. The result is a clean, oxide-free edge that meets typical aerospace finish requirements without secondary processing.
What power fiber laser is needed for aerospace component cutting?
For thin-gauge aerospace sheet (0.5-3 mm titanium, Inconel, aluminum), a 2,000-3,000W fiber laser is adequate. For thicker structural aluminum panels (up to 20 mm), a 6,000-12,000W machine delivers the best combination of speed and cut quality.
How does fiber laser cutting meet AS9100 quality standards?
Fiber laser machines support AS9100 compliance through precise CNC-controlled positioning (±0.01 mm repeatability), data logging of cutting parameters, and the ability to maintain consistent process settings across production runs. Documentation of these parameters forms part of a first article inspection (FAI) package.
What is the heat-affected zone (HAZ) in aerospace laser cutting?
The HAZ is the narrow band of base material adjacent to the cut edge that experiences elevated temperature during cutting. Fiber lasers produce a very small HAZ (typically 0.1-0.3 mm on titanium) because energy is deposited very rapidly in a tiny focal spot. This is critical for aerospace alloys that are sensitive to thermal alteration of their microstructure.
Is fiber laser cutting better than waterjet for aerospace titanium?
Both have roles. Waterjet produces no HAZ and can cut very thick sections, but is slower, requires abrasive management, and leaves a rough edge that often needs finishing. Fiber laser is faster, produces excellent edge quality on thicknesses up to 12-15 mm, and is far easier to program and automate. For production volumes, fiber laser is generally preferred for thin-to-medium gauge aerospace parts.
Can I cut Inconel 718 with a fiber laser machine?
Yes. Inconel 718 is one of the most challenging aerospace alloys, but fiber lasers handle it well up to about 8-10 mm thickness using nitrogen assist gas. Power settings and cutting speed must be dialed in carefully - Bhavya's application engineers provide recommended parameter tables for Inconel.
What maintenance does a fiber laser require in an aerospace shop?
Key maintenance tasks include daily cleaning of the protective window lens, weekly inspection of the nozzle orifice and assist gas pressure settings, monthly checks of chiller performance and beam alignment, and periodic replacement of the focus lens (every 1,500-3,000 hours depending on use). Fiber laser sources themselves are solid-state and require minimal maintenance.
