Introduction: Why Panel Bending Errors Are Costly
An automatic panel bender is a high-precision CNC machine, but like any manufacturing equipment, it can produce errors when not set up correctly, when material properties vary, or when the machine’s mechanical systems drift out of calibration. Understanding these errors – what causes them and how to prevent them – is essential for any sheet metal fabrication business relying on panel bending for production.
In electrical enclosure manufacturing, HVAC ductwork, elevator panelling, and architectural cladding – where tight tolerances and surface quality are non-negotiable – panel bending errors translate directly into rework costs, material wastage, and delayed deliveries. This guide covers the 10 most common automatic panel bending errors, their root causes, and concrete corrective actions.
Error 1: Angular Deviation – Incorrect Bend Angle
Symptoms
The bent angle measured on the finished part does not match the programmed angle. Deviations of 1°-3° are common when setup parameters are not optimised for the specific material batch.
Root Causes
- Springback not accounted for in the CNC program – the most common cause
- Material yield strength variation between batches (even same grade/thickness can vary ±15%)
- Worn or incorrect bending blade geometry
- Blade clearance set incorrectly for the sheet thickness
How to Avoid It
- Always run a test bend on a sample piece from the actual production batch before starting production.
- Use the machine’s automatic angle correction feature (available on most modern CNC panel benders).
- Create and maintain a springback compensation table for each material grade and thickness.
- Inspect bending blades regularly and replace if radius wear is detectable.
Error 2: Springback – Part Opens After Bending
Symptoms
After bending, the sheet springs back partially, resulting in an angle larger (more open) than intended. This is especially pronounced with high-tensile steel, stainless steel, and aluminium alloys.
Root Causes
- Elastic recovery is an inherent property of all metals – the higher the yield strength, the greater the springback.
- Insufficient overbend angle in the CNC program.
- Using inappropriate blade geometry for the material.
How to Avoid It
- Calculate the springback compensation angle for each material type and add it to the CNC bend angle program. Stainless steel typically requires 2°-4° overbend; aluminium 1°-3°; CRCA mild steel 0.5°-2°.
- Use adaptive bending mode (available on advanced CNC panel benders) that measures the actual angle mid-bend and compensates automatically.
- Consult material data sheets for yield strength (Rp0.2) – this is the key predictor of springback magnitude.

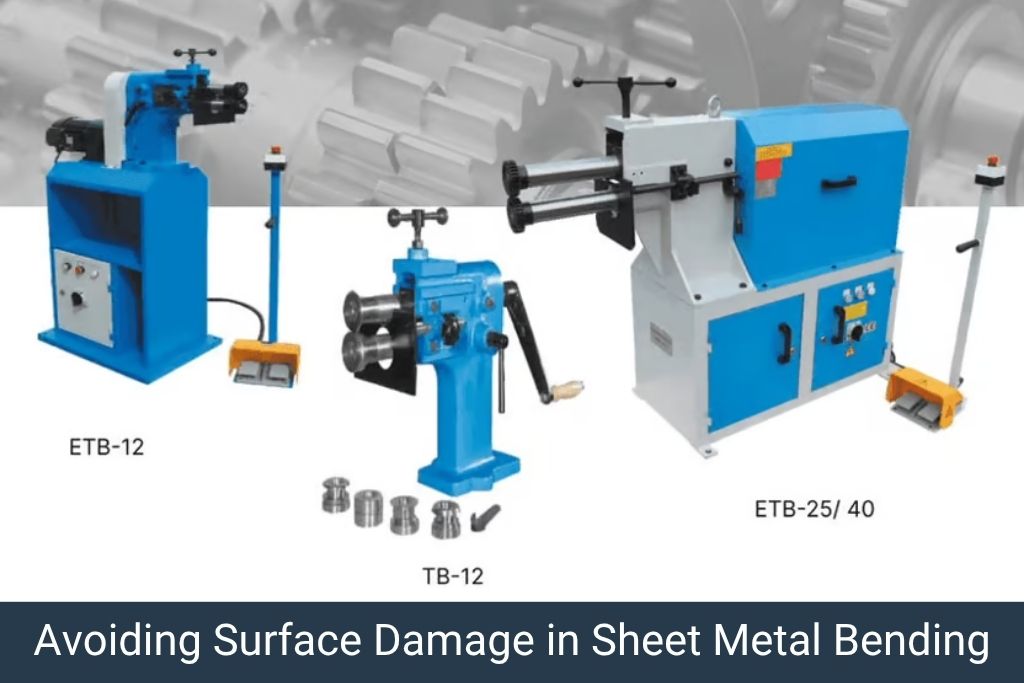

Error 3: Sheet Surface Marking or Scratching
Symptoms
Visible scratch marks, pressure lines, or indentations on the bent component surface – especially on pre-painted or stainless steel sheets.
Root Causes
- Blank holder clamping force too high for the sheet surface hardness/coating.
- Debris or metal chips on the blank holder clamping surface.
- Damaged or rough blade surface finish.
- Incorrect sheet alignment causing blade edge contact with sheet face.
How to Avoid It
- Reduce blank holder clamping force to the minimum necessary to hold the sheet without slipping.
- Clean the blank holder clamping surface and blade surfaces before each production run.
- Inspect blade surfaces for nicks or corrosion – polish or replace as required.
- Use polyurethane protective film on pre-painted sheets; use protective blade inserts for stainless steel work.
Error 4: Twist or Camber in the Finished Part
Symptoms
The finished panel is twisted – it does not lie flat on a reference surface. Common in long, thin panels (e.g., 2000mm × 200mm enclosure sides).
Root Causes
- Residual stress in the incoming sheet (coil memory or differential rolling stresses).
- Uneven blank holder clamping pressure across the full working length.
- Sequential bends applied with different reference edges, introducing cumulative error.
How to Avoid It
- Flatten sheets with a levelling machine before bending; do not bend sheets that have visible coil bow.
- Check blank holder parallelism and adjust if pressure variation exceeds 5% across the length.
- Always use the same reference edge for all bends in a sequential bending program.
- For long thin panels, use intermediate support fingers if available on your machine model.
Error 5: Incorrect Flange Length (Dimensional Error)
Symptoms
The flange length (distance from bend line to sheet edge) is shorter or longer than specified. Deviations greater than ±0.5mm cause assembly problems in enclosure manufacturing.
Root Causes
- Incorrect blank size (cutting error from upstream process).
- Sheet not positioned correctly against the backgauge stop.
- Backgauge stop wear or loose stop fingers.
- Thermal expansion of the machine bed during extended production runs.
How to Avoid It
- Verify blank dimensions before loading – use a measuring tape or CMM for critical parts.
- Inspect backgauge stop contact surfaces weekly; replace worn stop inserts.
- Allow the machine to stabilise thermally (15-20 minutes warm-up) before precision production runs.
- Re-verify flange dimensions after the first 10 pieces of each production run.
Error 6: Inconsistent Results Across a Production Batch
Symptoms
First 20 parts are good; subsequent parts show angular deviation or dimensional creep. Quality deteriorates over the shift.
Root Causes
- Thermal expansion of the bending blade or machine frame during sustained production.
- Gradual material property variation within a steel coil (yield strength is not perfectly uniform).
- Chiller/hydraulic oil temperature rise affecting the bending system response.
How to Avoid It
- Schedule in-process inspection every 50 parts: check one part for all critical dimensions and angles.
- If the machine has an oil cooling system, ensure it is functioning and maintaining stable oil temperature.
- Use the machine’s in-process angle correction feature to recalibrate mid-production if needed.
Error 7: Blade Collision with Pre-Punched Features
Symptoms
Bending blade strikes a punched hole, slot, or notch in the sheet, causing blade damage and/or deformation of the sheet near the feature.
Root Causes
- CNC program not accounting for hole/slot positions relative to the bend line.
- Incorrect blank feeding orientation (sheet loaded backwards or mirrored).
- DXF import error where hole data is not correctly associated with the part geometry.
How to Avoid It
- Always verify the CNC program with a graphical simulation before running the first piece.
- Check that DXF import correctly identifies all internal features (holes, slots, notches).
- Mark a reference corner on the blank and verify orientation matches the CNC program orientation before each production run.
- Use minimum flange width limits defined in the machine’s tooling capability chart to ensure no blade overlap with punched features.
What Our Customers Say
“Largest Display of Machinery across India. Wide range of Machines. Very Co-operative staff. Range of Tapping Machine and Re-sharpening Machines are outstanding. Very Cost effective and useful in Precision Machining Work. Their staff is co – operative for after sales support.”
Tirth Bhojani On Google
Error 8: Blank Holder Damage from Over-Clamping
Symptoms
Deformation of the sheet at the clamped area – a raised ridge or compression mark at the backgauge edge of the part.
Root Causes
- Blank holder force set too high for the sheet thickness.
- Using wrong blank holder insert type for soft materials (e.g., standard steel insert used on aluminium).
How to Avoid It
- Refer to the machine manufacturer’s clamping force table for each material and thickness combination.
- Use material-appropriate blank holder inserts – polyurethane-faced inserts for aluminium and coated sheets.
- Reduce clamping force incrementally until the sheet holds without slipping but shows no surface marking.
Error 9: Program Errors from Incorrect DXF Import
Symptoms
The machine produces wrong bend sequences or wrong flange angles – despite the operator believing the program is correct.
Root Causes
- DXF file drawn with incorrect layer assignments (bend lines on wrong layer).
- Scale error in the DXF file (drawn in inches but imported as mm).
- Multiple overlapping lines at bend positions confusing the CAM software.
How to Avoid It
- Standardise your DXF export settings: ensure bend lines are on a designated layer, all geometry is in mm, and no duplicate lines exist.
- Always run the graphical simulation on the CNC controller before the first physical part.
- Maintain a library of verified programs for repeat parts – do not re-import from DXF for repeat production.
Email Us
Error 10: Machine Geometric Drift Over Time
Symptoms
Parts that were previously acceptable start showing systematic angular or dimensional errors across all production, even with correct programming.
Root Causes
- Wear in the bending blade drive system (lead screw, servo coupling).
- Blade reference position drifting due to encoder battery failure or motor coupling slip.
- Machine bed or column deformation from impact or long-term thermal cycling.
How to Avoid It
- Schedule a full machine geometric calibration every 6 months.
- Check and replace servo encoder batteries annually.
- Inspect blade drive lead screws and couplings for wear every 6 months.
- After any machine collision or hard crash, perform a full geometric re-calibration before returning to production.
Panel Bending Error Diagnostic Quick Reference
| Symptom | Most Likely Cause | Quick Fix |
| Angle too open (>target) | Springback undercompensated | Increase overbend angle in program |
| Angle too closed (<target) | Overbend too aggressive | Reduce overbend angle; check blade wear |
| Surface scratch on face | Clamping force too high or dirty blank holder | Reduce force; clean clamping surface |
| Twist in long panels | Coil stress or uneven clamping | Pre-level sheet; check blank holder parallelism |
| Flange length wrong | Backgauge stop worn or blank wrong size | Re-measure blank; replace stop inserts |
| Blade hits punched feature | Program not accounting for holes | Re-simulate; verify blank orientation |
| Inconsistent batch quality | Thermal drift or material variation | In-process checks every 50 parts |
Frequently Asked Questions on Automatic Panel Bending Errors
What is the most common cause of angular errors on a CNC panel bender?
Springback is the most common cause. Every metal sheet springs back elastically after bending. If the springback angle is not pre-programmed as an overbend compensation, the finished angle will be larger (more open) than specified. The exact springback depends on material grade, yield strength, thickness, and bend radius.
How can I prevent scratches on stainless steel sheets during panel bending?
Use stainless-specific blade inserts with high-quality polished surfaces, reduce blank holder clamping force to the minimum required, clean the blank holder and blade surfaces before each run, and apply a thin protective PVC film on the sheet if surface finish is critical.
Why do my panel bending dimensions drift over a long production run?
Thermal expansion of the machine structure and tooling causes dimensional creep over extended production. Allow the machine to reach thermal equilibrium before precision production, use the in-process angle correction feature, and schedule dimensional checks every 50-100 parts.
Can I prevent blade collision with pre-punched holes automatically?
Modern CNC panel benders with feature-aware CAM software will automatically detect hole and slot positions from the DXF import and alert the operator if a blade collision risk exists. Always run the graphical simulation and verify the program before running the first physical part.
How often should a CNC panel bender be recalibrated for production accuracy?
A full geometric calibration should be performed every 6 months or after any hard crash/collision. Regular 6-monthly calibration keeps angular accuracy within ±0.2° and flange dimensional accuracy within ±0.3mm.
Conclusion
Automatic panel bending errors are not inevitable – they are preventable. With proper machine setup, trained operators, regular maintenance, and in-process quality checks, modern CNC panel benders consistently deliver angular accuracy within ±0.2° and dimensional tolerances within ±0.3mm.
