Press Brake Bending Force Calculator Guide: How to Determine Required Tonnage

Press Brake Bending Force and Tonnage Selection Overview

Choosing the right press brake tonnage is a critical technical decision for any sheet metal fabrication operation, since an undersized CNC press brake struggles to complete a bend while an oversized machine adds unnecessary cost. This guide explains press brake bending force, the tonnage calculation formula, and how sheet thickness, material, bending length and V die opening determine required capacity. As a trusted press brake manufacturer in India, Bhavya Machine Tools helps fabrication companies, engineering firms and industrial buyers match press brake tonnage to real production requirements.

What Is Press Brake Bending Force?

Press brake bending force is the amount of pressure a press brake must apply through its ram and tooling to bend sheet metal to a specified angle. It is expressed in tons or kilonewtons and depends on the material being bent, its thickness, the length of the bend and the V die opening used. Bending force is not a fixed number; it changes with every combination of material and tooling.

Bending force determines whether a machine can complete a bend cleanly, whether the bend angle stays consistent across the length of the part, and whether the machine and tooling are placed under safe operating stress. Understanding bending force is the starting point for selecting correct press brake tonnage.

Bhavya Machine Tools helps buyers work backward from their actual bending force requirement to identify a press brake with suitable ram capacity, rather than selecting a machine based on price or general assumptions.

What Is Press Brake Tonnage and Why Does It Matter?

Press brake tonnage is the maximum bending force a machine can safely deliver, expressed in tons per metre of bed length or as total machine tonnage. It matters because tonnage directly determines what sheet thickness, material and bending length a machine can handle.

Correct tonnage selection affects:

• Whether the bend completes fully or remains incomplete
• Bending accuracy and repeatability across production runs
• Tooling life and machine component wear
• Overall machine utilisation and production efficiency

A press brake with tonnage matched to the application performs bends consistently, while a mismatched machine either fails to bend the material or operates well below its capability. Bhavya Machine Tools guides buyers through this evaluation using actual part specifications, so the recommended press brake tonnage reflects real production conditions rather than a single generic figure.

Press Brake Tonnage Calculation Formula

The most commonly used press brake tonnage calculation formula for air bending is:

P = (1.42 × T² × L × Rm) / V

Where:

• P = required bending force in kilonewtons (kN)
• T = sheet thickness in millimetres
• L = bending length in metres
• Rm = tensile strength of the material in newtons per square millimetre (N/mm²)
• V = V die opening in millimetres

The result in kN can be converted to metric tons using the approximate relationship 1 kN equals 0.102 tons. This formula forms the basis of most press brake tonnage calculators used across the sheet metal industry.

Bhavya Machine Tools uses this same calculation approach when advising customers, applying it to the buyer’s actual sheet thickness, material and bending length instead of offering a single assumed tonnage figure.

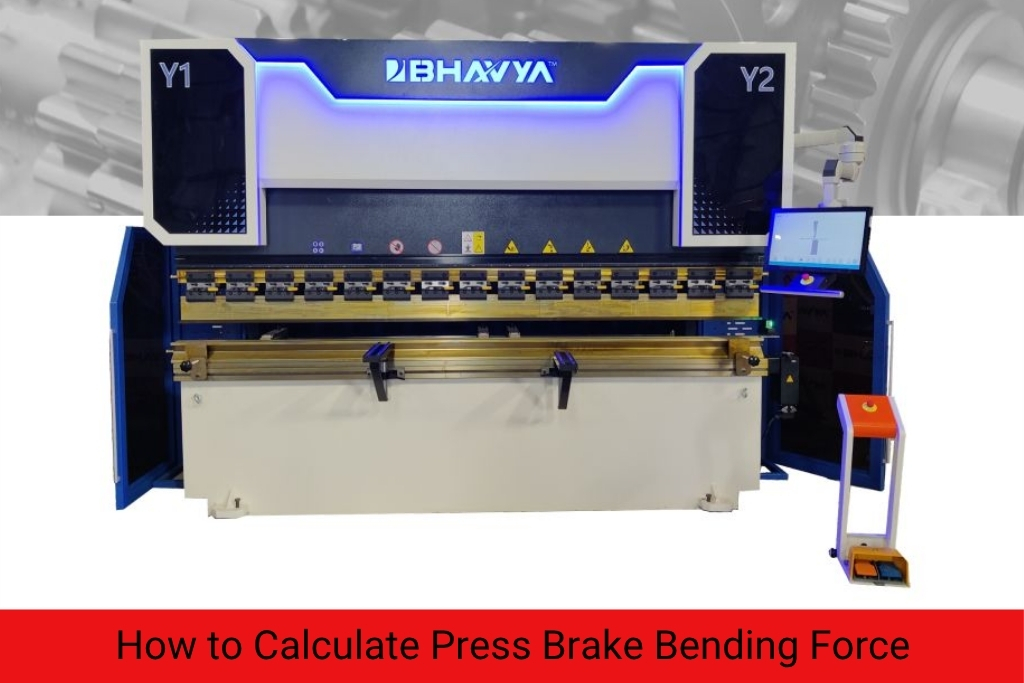

How to Calculate Press Brake Bending Force

To calculate press brake bending force for a specific job, four inputs are required: sheet thickness, material tensile strength, bending length and V die opening. Once these values are known, they are applied directly to the tonnage calculation formula above.

Applying the formula:

P = (1.42 × 4² × 2 × 400) / 32 P = (1.42 × 16 × 2 × 400) / 32 P = 18176 / 32 P = 568 kN

Converting to tons: 568 × 0.102 = approximately 58 tons

This means the job requires a press brake capable of delivering at least 58 tons of bending force, and a buyer would typically select a machine rated at 60 to 100 tons to allow for tooling variation and a safety margin. This same working method applies regardless of part size, and Bhavya Machine Tools assists customers in running this calculation for their own components before recommending a specific press brake model.

Press Brake Tonnage Calculation Based on Sheet Thickness

Sheet thickness has the strongest influence on required tonnage because it appears as a squared term in the bending force formula. Doubling sheet thickness increases required bending force by roughly four times, not two, for the same bending length and die opening.

This is why manufacturers working with thicker gauge material need proportionally larger press brake capacity even when bending length stays the same. A workshop bending 2 mm sheet and a workshop bending 6 mm sheet of the same material and length require very different tonnage, even though the difference in thickness appears small.

Bhavya Machine Tools reviews the full thickness range a customer currently processes, along with any thicker gauge work anticipated in future production, to recommend a press brake tonnage that comfortably covers the operation without unnecessary oversizing.

How Sheet Metal Material Affects Press Brake Tonnage

Material type affects tonnage through tensile strength. Materials with higher tensile strength require greater bending force for the same thickness and bending length. Two sheets of identical thickness can require noticeably different tonnage simply because their tensile strength differs.

Manufacturers working with a single material type can plan tonnage requirements around a narrow range, while manufacturers processing multiple material types need to calculate tonnage separately for each material and select a machine that comfortably covers the highest requirement.

Bhavya Machine Tools helps customers who process mixed material types identify a press brake tonnage range that accommodates their full material mix rather than sizing a machine around only the easiest material to bend.

Press Brake Tonnage for Mild Steel, Stainless Steel and Aluminium

Different metals require different bending force due to their mechanical properties:

• Mild steel typically has tensile strength around 400 to 450 N/mm² and requires moderate tonnage for most common thicknesses.
• Stainless steel has higher tensile strength, generally around 550 to 750 N/mm², and requires noticeably higher tonnage than mild steel of the same thickness.
• Aluminium generally has lower tensile strength, often between 150 and 300 N/mm² depending on grade and temper, and requires comparatively lower bending force.

A fabricator switching between these materials on the same press brake needs to recalculate tonnage for each material rather than assuming one setting applies across all jobs. Bhavya Machine Tools advises customers who regularly switch between mild steel, stainless steel and aluminium on selecting press brake capacity based on the most demanding material in their production mix, so the machine remains suitable across the full job range.

How V Die Opening Affects Press Brake Bending Force

V die opening has an inverse relationship with required bending force. A wider V die opening reduces required tonnage, while a narrower V die opening increases it. This is because die opening appears in the denominator of the tonnage formula.

Die selection is not only about tonnage. A wider die opening also affects the minimum flange length achievable and the inside bend radius, so die opening must be selected based on both bending force and part geometry requirements, not tonnage reduction alone. A common industry guideline is selecting V die opening at approximately 8 times material thickness for standard air bending.

Bhavya Machine Tools supports customers in selecting appropriate tooling and die opening alongside machine tonnage, ensuring the combination produces the required bend angle and accuracy rather than treating die selection as a separate decision.

Press Brake Bending Length and Required Tonnage

Bending length has a direct, proportional relationship with required tonnage. A longer bend line requires proportionally more total force even when thickness, material and die opening remain unchanged. This is why press brake tonnage is often expressed per metre of bed length, then multiplied by the actual bending length of the part.

Manufacturers producing long panels, structural sections or large enclosures need to evaluate tonnage based on their longest typical bend length, not an average part size. A machine that comfortably handles short bends may still be undersized for the same material and thickness at a longer bend length.

Bhavya Machine Tools works with buyers producing long format components to confirm that the recommended press brake bed length and tonnage rating together support the full bending length required in production, not only the tonnage figure in isolation.

Press Brake Tonnage Calculation Example

Building on the calculation method described earlier, consider a second scenario using stainless steel:

• Sheet thickness (T): 3 mm
• Tensile strength (Rm) for stainless steel: approximately 600 N/mm²
• Bending length (L): 1.5 metres
• V die opening (V): 24 mm

P = (1.42 × 3² × 1.5 × 600) / 24 P = (1.42 × 9 × 1.5 × 600) / 24 P = 11502 / 24 P = 479 kN

Converting to tons: 479 × 0.102 = approximately 49 tons

Compared with the mild steel example in section 4, this stainless steel part is thinner and shorter, yet still requires comparable tonnage because of the higher tensile strength of stainless steel. This illustrates why tonnage cannot be estimated from thickness alone. Bhavya Machine Tools applies this same calculation approach for each customer enquiry, using the buyer’s actual thickness, material and bending length rather than a generic reference figure.

Press Brake Tonnage Chart for Common Sheet Metal Applications

The table below gives approximate indicative tonnage requirements per metre of bending length for common thickness and material combinations, based on a die opening of approximately 8 times thickness. Actual requirements should always be confirmed using the calculation formula for the specific job.

Sheet Thickness	Mild Steel (approx tons/m)	Stainless Steel (approx tons/m)	Aluminium (approx tons/m)
2 mm	7	10	4
3 mm	15	22	9
4 mm	27	40	16
6 mm	60	90	36
8 mm	107	160	64

These figures are indicative only and vary with actual tensile strength, die opening and bending method used. Bhavya Machine Tools recommends treating such a chart as a starting reference point, then confirming exact tonnage for critical or high volume jobs using the full calculation with the customer’s specific material certificate and part drawing.

How to Select the Right Press Brake Capacity

The right press brake capacity is the tonnage that comfortably covers a manufacturer’s heaviest routine job, typically calculated with a margin of about 20 to 30 percent above the highest calculated requirement, while still matching the bed length, stroke and CNC control needed for the intended part range.

Selecting press brake capacity should account for:

• Maximum sheet thickness and material tensile strength processed
• Longest bending length required
• Typical V die opening and tooling set used
• Current production volume and cycle time expectations
• Component size and geometry, including box sections or deep bends
• Future production plans, including new material types or larger parts

Choosing capacity based only on today’s smallest job risks selecting a machine that cannot support future orders. Bhavya Machine Tools reviews both current and anticipated production requirements with each customer so the recommended press brake tonnage and bed length remain suitable well beyond the initial purchase.

What Happens If Press Brake Tonnage Is Too Low or Too High?

Selecting tonnage that is too low for the application typically results in:

• Incomplete or inconsistent bending
• Machine overload and increased strain on hydraulic and structural components
• Poor bend accuracy and repeatability
• Faster tooling wear or tool damage
• Reduced productivity due to repeated passes or job rejection

Selecting tonnage that is significantly higher than required is not itself unsafe, but it typically results in:

• Higher initial machine investment than necessary
• Increased operating and maintenance cost for capacity that is rarely used
• Unsuitable machine utilisation relative to actual production needs

Correct tonnage selection sits between these two outcomes, matched closely to actual and near future production requirements. Bhavya Machine Tools works through this balance with each customer, using calculated tonnage figures rather than oversized or undersized assumptions, so buyers avoid both operational risk and unnecessary capital cost.

CNC Press Brake Tonnage, Accuracy and Productivity Considerations

Tonnage and CNC control work together to determine bending accuracy and production efficiency. Adequate tonnage ensures the machine can complete each bend fully, while CNC backgauge positioning, programmable ram speed and angle control ensure the bend is placed accurately and repeated consistently across a production run.

Productivity is influenced by the relationship between required tonnage, bending length, cycle time, setup time and operator handling. A correctly sized CNC press brake reduces the need for multiple passes, minimises setup adjustments between jobs, and supports higher throughput on repeat production. Undersized machines often require slower, multi stage bending, which increases cycle time and reduces overall output.

Bhavya Machine Tools focuses this section of the buying discussion on repeatability and productivity, helping customers evaluate CNC press brake specifications, backgauge accuracy and control systems alongside tonnage, so the finished machine selection supports both bending quality and production targets.

Press Brake Tonnage Selection Summary

Required press brake tonnage always depends on actual sheet thickness, material, bending length and V die opening, not one fixed figure for every job. Manufacturers who calculate tonnage correctly select a press brake that bends consistently, protects tooling and supports production without excess cost. Bhavya Machine Tools helps fabrication companies and industrial buyers evaluate these factors and recommends suitable press brake tonnage and specification. Buyers planning a purchase or upgrade are encouraged to share their sheet thickness, material and bending requirements before finalising a machine selection.
