CNC Press Brake for Stainless Steel Bending: Tips, Challenges & Solutions

Introduction: Why Stainless Steel Is Challenging to Bend

Stainless steel is one of the most widely used materials in sheet metal fabrication – from food processing equipment to pharmaceutical machinery, architectural cladding, chemical tanks, and kitchen equipment. However, it is also one of the most challenging materials to bend accurately on a CNC press brake.

The combination of high tensile strength, significant work hardening during deformation, and pronounced springback means that techniques that work perfectly for mild steel will produce inconsistent angles, surface marks, and even cracking when applied directly to stainless steel. Understanding and compensating for these properties is what separates mediocre stainless bending from consistent, professional results.

This article provides a detailed technical guide to bending stainless steel on a CNC press brake – covering material grades, tooling selection, tonnage calculation, springback management, and practical operator tips.

Stainless Steel Grades Commonly Used in Sheet Metal Bending

Challenge 1: Springback in Stainless Steel Bending

What Is Springback?

When any metal is bent, a portion of the deformation is elastic (recoverable). When the bending force is released, the part springs back partially toward its original shape. The amount of angular recovery is called springback. For mild steel, springback is typically 1-2°. For austenitic stainless steels (304, 316), springback is typically 3-6° at the same thickness and radius – sometimes more at small bend angles.

Why Stainless Steel Springs Back More

Stainless steel has a higher yield-to-tensile ratio and a higher work hardening rate than mild steel. More of the bending deformation remains in the elastic range, meaning more energy is stored in the material and released when the punch retracts. The higher the material’s tensile strength and the larger the inside bend radius, the more springback occurs.

Springback Compensation Strategies

• Over-bending: Program the CNC to bend 3-6° past the target angle, then rely on springback to bring the part to the correct final angle. This requires empirical testing with each material batch (springback varies with material heat and thickness tolerance).
• Bottoming (coining approach): Drive the punch deeper to eliminate the springback by plastically deforming the material through its full thickness at the bend zone. Requires 5-8× more tonnage than air bending – use only where the machine capacity allows.
• Angle measurement with automatic compensation: Modern CNC press brakes (including Bhavya’s CNC series with Delem or ESTUN controllers) can be equipped with real-time angle measurement sensors that measure the actual bend angle during the stroke and automatically adjust punch depth to compensate for springback on that specific workpiece.

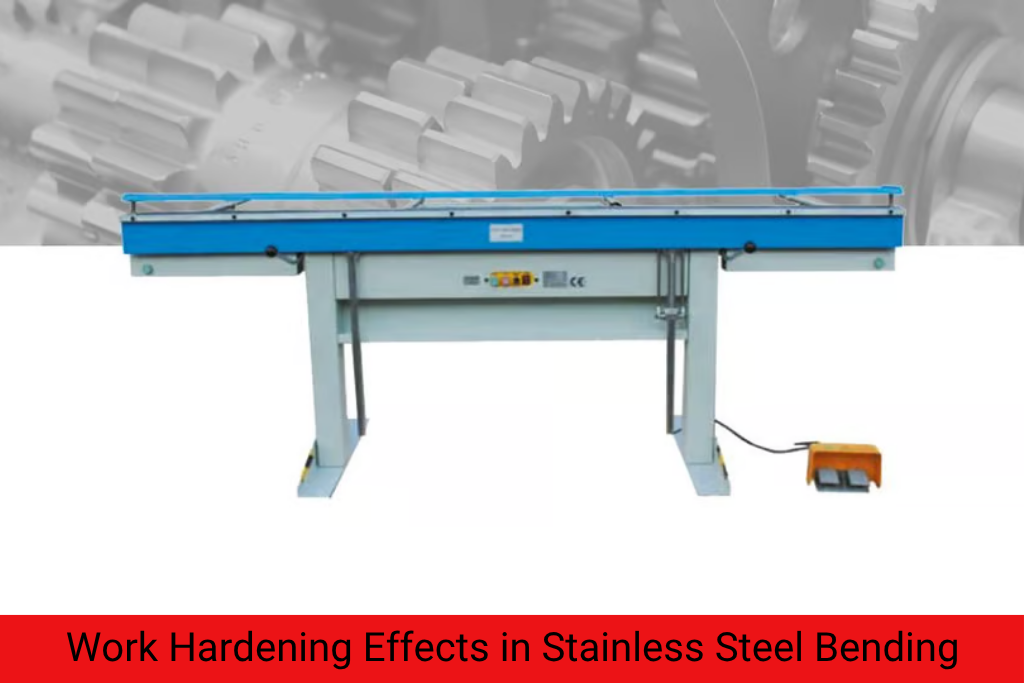

Challenge 2: Work Hardening

Every time stainless steel is bent, the deformation zone work-hardens – meaning the steel in the bend zone becomes harder and stronger than the parent material. This has two implications:

Challenge 3: Surface Marking and Galling

Polished stainless steel surfaces (2B, BA, No. 4 brush finish) are easily marked by press brake tooling. Standard carbon steel tooling leaves contact marks and can cause galling – micro-welding of tool steel to stainless at high contact pressure. Solutions:

• Use polyurethane die inserts: Replace V-die steel inserts with polyurethane (PU) shoulder protectors or PU-lined dies for work on polished surfaces. PU absorbs contact pressure without marking.
• Chrome-plated or polished tooling: Chrome-plated punches and dies significantly reduce galling tendency compared to plain carbon steel.
• Apply protective film: 50-75 µm PVC protective film applied to the stainless surface before bending prevents direct tool-to-metal contact. Remove after bending.
• Reduce punch-to-die contact: Use a narrow punch with a correct nose radius – for 304 SS, use a punch nose radius equal to at least 1× material thickness.

Tonnage Calculation for Stainless Steel Press Brake Bending

The standard press brake tonnage formula (air bending) is:

Minimum Bend Radius for Stainless Steel

Bending stainless steel to too tight a radius causes cracking on the outside of the bend. Minimum inside bend radii (as a multiple of material thickness ‘t’):

Note: ‘Parallel to grain’ means the bend line runs along the rolling direction of the sheet. Bending perpendicular to grain direction (bend line crosses rolling direction) allows tighter radii before cracking risk. Always orient blanks in the shearing/laser cutting stage to take advantage of this where tight radii are required.

CNC Press Brake Settings for Stainless Steel – Practical Tips

• Set bending speed (approach speed) to 8-12 mm/s for stainless – slower than mild steel. Rapid impacts cause inconsistent springback and increase marking risk.
• Use a V-die opening of 8× material thickness for SS 304/316 to balance tonnage requirement with acceptable springback.
• Program springback compensation angles based on test bends – typically +3° to +5° over the target for 1-3 mm SS in air bending.
• Enable automatic crowning on the press brake bed to compensate for bed deflection, especially on bends longer than 1,500 mm in stainless.
• Reduce bending speed in the final 5-10 mm of punch stroke for more consistent angle control.
• Use back gauge fingers set to the correct position and verify with a digital angle gauge on the first article of each new setup.
• Keep tooling scrupulously clean – even small deposits of mild steel chips on the die can cause corrosion staining on stainless parts.
