Top 10 Parts Made with CNC Lathe Machines

A CNC lathe machine is designed to perform highly accurate turning operations by following programmed instructions rather than relying purely on manual control, which makes it the preferred choice for producing precision round components at scale. Bhavya Machine Tools offers a wide range of flat bed CNC lathe machines and slant bed CNC turning machines suited for different diameter and length requirements, and these machines are used across countless industries to manufacture parts that demand tight dimensional tolerances and excellent surface finish. Because CNC lathe machines can repeat the same program thousands of times without deviation, they have become essential for producing high volume turned components that would be extremely time consuming and inconsistent if made manually. You can explore the parts manufactured using these cnc lathe machines on our product range covering flat bed, slant bed and combination CNC turning centers. This article highlights ten common categories of parts that are regularly produced on CNC lathe machines and explains why this technology suits each application so well.

Precision Shafts for Motors and Gearboxes

Shafts used in electric motors, gearboxes and pumps require extremely tight diameter tolerances along their length to ensure smooth bearing fit and proper rotational balance during operation. A CNC lathe machine can turn multiple diameter steps, chamfers and keyway flats on a single shaft in one continuous program, eliminating the inconsistency that often occurs with manual turning across several setups. Since shafts are usually produced in large quantities for equipment manufacturers, the repeatability of a flat bed CNC lathe ensures every piece matches the engineering drawing precisely, reducing assembly issues later in the production line. Many shaft manufacturers also use CNC turning to add threaded ends, grooves and radius transitions that improve fatigue resistance under continuous rotational load.

Bushings and Sleeve Bearings for Machinery

Bushings and sleeve bearings require accurate internal and external diameters along with a smooth bore finish to allow proper rotation of shafts or pins passing through them. CNC lathe machines excel at producing these cylindrical components because the programmed tool path ensures consistent wall thickness and roundness across every piece in a production batch. Many bushings also require a specific chamfer or step on one end for correct seating within a housing, which a CNC turning center can complete in the same operation as the main bore. Industries ranging from agricultural machinery to industrial pumps depend on accurately turned bushings, making CNC lathe machines a natural fit for this high volume, tolerance sensitive component category.

Flanges for Pipe and Pressure Vessel Connections

Flanges used to connect pipes, valves and pressure vessels must have precisely turned faces, bolt hole patterns and sealing surfaces to prevent leakage under pressure. A CNC lathe machine turns the outer diameter, face and bore of a flange with high repeatability, ensuring consistent sealing surface quality across every unit produced for a project. Many flanges also require a specific surface finish on the mating face to work properly with gaskets, something that CNC turning achieves reliably compared to manual facing operations. Piping and pressure equipment manufacturers frequently rely on CNC lathe machines to produce flanges in various pressure ratings and sizes while maintaining strict adherence to industry standards for dimensional accuracy.

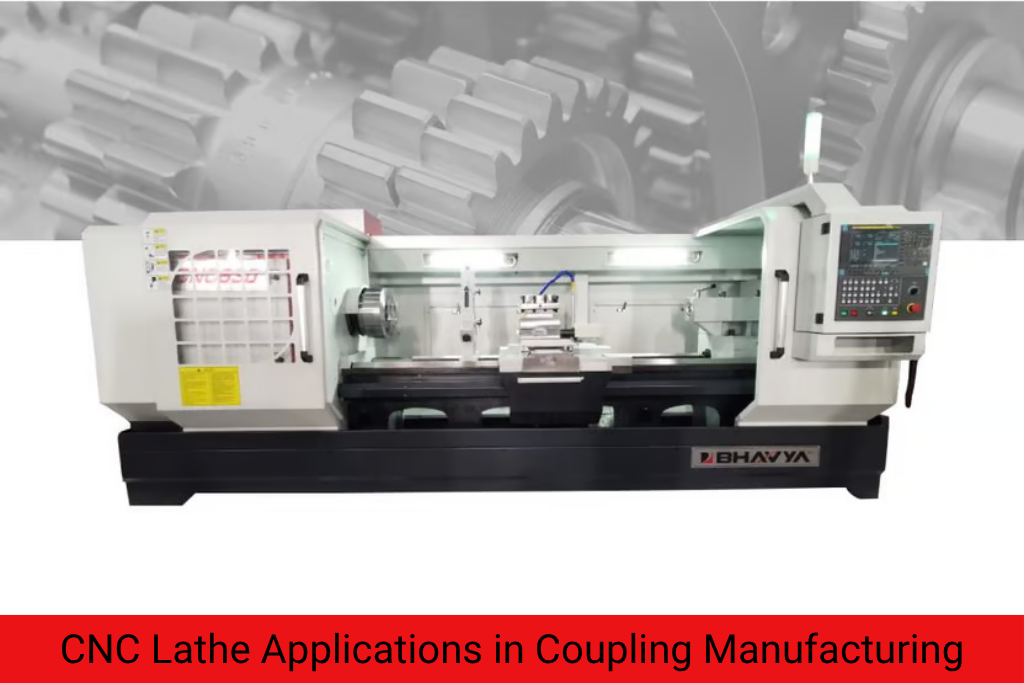

Couplings for Power Transmission Systems

Valve Bodies and Fittings for Fluid Control Systems

Valve bodies used in fluid and gas control systems require accurately turned internal bores, threaded ports and sealing seats to function correctly under varying pressure conditions. CNC lathe machines are widely used to produce these components because the programmed turning process can hold tight tolerances on multiple internal features within a single setup, reducing the risk of leakage caused by misalignment. Many valve fittings also need precise thread profiles that must match standard pipe thread specifications exactly, something CNC turning centers achieve reliably through synchronized spindle and carriage movement. Fluid control equipment manufacturers depend on this consistency to ensure valves perform safely across industrial, agricultural and plumbing applications.

Pulleys and Sheaves for Belt Drive Systems

Pulleys and sheaves used in belt drive systems require accurately turned grooves and balanced outer diameters to ensure smooth belt tracking and minimal vibration during operation. A CNC lathe machine can turn multiple groove profiles and hub bores in a single program, ensuring that each pulley in a batch maintains the same groove depth and angle for consistent belt engagement. Since pulleys often need to be dynamically balanced, dimensional consistency from CNC turning reduces the amount of additional balancing work required after machining. Textile machinery, agricultural equipment and general industrial drive systems all depend on precisely turned pulleys produced through CNC lathe technology for reliable, long term performance.

Threaded Fasteners and Precision Studs

While standard fasteners are often mass produced through thread rolling, specialised or custom studs, bolts and threaded shafts with unique dimensions are frequently manufactured on CNC lathe machines, especially for low to medium volume industrial applications. CNC turning allows manufacturers to produce fasteners with specific head shapes, undercuts and thread lengths that standard commercial fasteners cannot provide, which is important for specialised machinery repair and custom equipment assembly. Collet chucks and bar feeders are commonly used with CNC lathe machines to efficiently produce these smaller diameter fasteners in batches without excessive material handling. This capability makes CNC turning centers valuable for tool rooms and job shops that need custom threaded components on demand.

Rollers Used in Conveyor and Printing Equipment

Rollers used in conveyor systems, printing presses and packaging machinery require accurately turned cylindrical surfaces with tight straightness tolerances to prevent uneven material feeding or product misalignment during operation. CNC lathe machines produce these rollers with consistent diameter along their entire length, which is critical for maintaining even pressure distribution across a conveyor belt or printing surface. Many rollers also require precision turned shaft ends for bearing fitment, which a CNC turning center completes in the same setup as the main roller body. Packaging, textile and printing equipment manufacturers rely heavily on CNC lathe machines to produce rollers that perform reliably across continuous, high speed production environments.

Spindles for Machine Tools and Rotating Equipment

Spindles used within other machine tools, pumps and rotating equipment require some of the tightest tolerances found in mechanical component manufacturing, since even small dimensional errors can cause excessive vibration or premature bearing failure. CNC lathe machines, particularly high speed precision lathe and slant bed CNC turning models, are used to produce these spindles because they can achieve the concentricity and surface finish required for high speed rotational applications. Many spindles also require multiple diameter steps and taper sections for bearing seats and tool mounting, all of which can be programmed into a single CNC turning cycle. This capability makes CNC lathe machines essential equipment for manufacturers supplying precision rotating components to the machine tool industry.

Hydraulic Cylinder Components Such as Rods and Pistons

Hydraulic cylinder rods and pistons require extremely smooth, accurately turned surfaces to maintain proper sealing and prevent leakage under high pressure operating conditions. CNC lathe machines produce these components with the consistent diameter and surface finish needed for seal compatibility, which is critical since even minor surface irregularities can cause hydraulic fluid to bypass the seals over time. Many cylinder rods also require precision turned threads and grooves for seal retention, all of which can be completed accurately within a CNC turning program. Hydraulic equipment manufacturers across construction, agricultural and industrial sectors depend on CNC lathe machines to produce these critical components reliably at the volumes their production schedules demand.

Conclusion

CNC lathe machines have transformed the way precision turned components are manufactured, offering the accuracy, repeatability and flexibility needed to produce parts ranging from simple bushings to complex hydraulic cylinder rods. Whether an industry needs shafts, flanges, couplings or spindles, CNC turning technology consistently delivers the dimensional control that modern engineering applications require. Bhavya Machine Tools manufactures a comprehensive range of flat bed CNC lathe machines suited for producing these varied components, supporting manufacturers across automotive, hydraulic, textile and general engineering sectors with reliable turning solutions.
