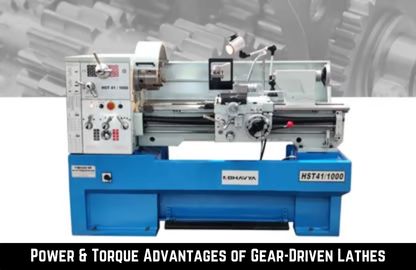

The all geared lathe machine represents a pivotal stage in the evolution of metalworking technology. Moving beyond the simplicity of belt-driven systems, the geared headstock transformed the lathe from a general-purpose tool into a high-torque, precision workhorse capable of continuous industrial output. This article explores the core advantages of the all geared design, compares it to its belt-driven and CNC counterparts, and details its diverse applications and types in modern manufacturing.
All Geared vs. Belt-Driven Lathes: The Rigidity Advantage
The most critical difference between an all geared lathe (often called an Engine Lathe) and a traditional belt-driven or cone pulley lathe lies in the power transmission system housed within the headstock.
Superior Power, Torque, and Speed Control
In a belt-driven lathe, the motor’s power is transferred to the spindle via a belt and a stepped cone pulley. Changing the spindle speed requires the operator to manually shift the belt to different pulley steps, a time-consuming and often inefficient process. More importantly, the power transmission relies on the friction of the belt, which can lead to:
- Belt Slippage: Reduced efficiency, especially under heavy load.
- Lower Torque: Limits the depth of cut and the hardness of materials that can be machined effectively.
The all geared lathe, by contrast, uses a series of interlocking gears (typically made of hardened steel) to transmit power directly from the motor to the spindle. Speed selection is handled by shifting levers on the headstock, which quickly engage different gear ratios, similar to shifting a car’s transmission.
| Feature | All Geared Lathe | Belt-Driven Lathe |
| Power Transmission | Direct through robust gears (High Efficiency) | Via flexible belts and pulleys (Slight power loss/slippage) |
| Torque & Cutting | High Torque at all speeds, ideal for heavy, continuous cuts. | Moderate Torque, suited for light-to-medium cuts. |
| Speed Change | Fast and Easy via levers; typically, 12-18 precise speeds. | Slow, manual belt repositioning; fewer speed steps. |
| Rigidity & Vibration | Excellent – solid gear contact minimizes vibration. | Good – belts can introduce minor vibration or “chatter.” |
| Best Use Case | Industrial production, hard metals, continuous operation. | Small workshops, educational training, soft materials. |
This geared system ensures stable speed and maximum torque across its entire operating range. This stability is the core reason the all geared lathe can handle heavier cuts and machine harder materials like alloy steel and stainless steel without sacrificing performance, a task where a belt-driven lathe would struggle with belt slippage.
Increased Accuracy and Precision
The direct gear-to-gear contact provides a much more rigid and positive drive to the spindle compared to the inherent flexibility of a belt. This rigidity translates directly into higher accuracy and superior surface finish for general turning operations. While a belt-driven lathe is certainly capable of good accuracy, its dependence on the belt drive can introduce minor inconsistencies.
Furthermore, the all-geared mechanism allows for the precise, repeatable control necessary for the quick change gearbox, which dictates the feed rates and the ability to cut a wide range of standard andnon-standard threads (metric, imperial, module, and diametral pitch) simply by changing lever positions.6
What Our Customers Say
“Largest Display of Machinery across India. Wide range of Machines. Very Co-operative staff. Range of Tapping Machine and Re-sharpening Machines are outstanding. Very Cost effective and useful in Precision Machining Work. Their staff is co – operative for after sales support.”
Tirth Bhojani On Google
All Geared vs. CNC Lathes: A Modern Machining Choice
The debate between the conventional all geared lathe and the Computer Numerical Control (CNC) lathe is not about which is inherently “better,” but which is appropriate for the job at hand.
The CNC Advantage: Speed, Complexity, and Automation
A CNC lathe is a machine tool controlled by a computer program, allowing for automated, multi-axis movement. Its key strengths are:
- High Precision and Repeatability: CNCs can achieve dimensional accuracy down to a few microns (e.g. 0.001mm to 0.005mm), offering far greater consistency than any manual machine.
- Complex Geometry: Capable of cutting intricate, complex contours, tapers, and profiles that would be impossible or prohibitively difficult on a manual machine.
- Mass Production: Once programmed, a CNC can run 24/7 with minimal operator intervention, drastically reducing the cost-per-part in high-volume production.
The All Geared Lathe’s Niche: Flexibility and Cost-Effectiveness
The all geared lathe, however, maintains its crucial role in the manufacturing ecosystem for specific scenarios:
| Factor | All Geared Lathe (Conventional) | CNC Lathe |
| Best Use Case | One-off parts, repair work, tool room jobs, short runs. | Medium-to-high volume production, complex parts. |
| Initial Cost | Significantly Lower ($) | High Initial Capital Investment ($$$$) |
| Setup Time | Very fast – can start machining in minutes. | Slow – requires complex programming and setup time (G-code). |
| Operator Skill | Requires highly skilled, hands-on machinist (Manual Dexterity). | Requires programmer/operator (Digital Programming Skill). |
| Flexibility | b for last-minute changes and quick material adjustments. | Limited once the program is set; changes require re-programming. |
For a workshop that handles repair jobs, custom prototyping, or low-volume batches where the setup time for a CNC would exceed the machining time, the flexibility and lower operating cost of the all geared lathe make it the superior choice. It remains an essential machine for tool rooms and maintenance departments worldwide.
All Geared Lathe Applications, Materials, and Types
The robustness and versatility derived from the geared design allow this class of lathe to excel in demanding environments and with challenging materials.
Handling Difficult Materials
Due to its high torque and heavy, rigid construction (typically featuring a solid cast-iron bed), the all geared lathe is perfectly suited for machining materials that demand significant cutting force and thermal stability:
- Alloy Steels: Used extensively in aerospace and defense.
- Stainless Steel: Requires high power to shear cleanly.
- Titanium and Nickel Alloys (Inconel): Extremely hard materials common in high-performance and energy sectors.
- Cast Iron and Bronze: Used in heavy industrial component manufacturing.
Common Industrial Applications
The all geared lathe is the backbone of general engineering and heavy industrial maintenance:
- Automotive and Heavy Vehicle: Machining of shafts, transmission components, and axles.
- Aerospace: Production of specialized fixtures, prototypes, and maintenance of landing gear components.
- Oil & Gas and Energy: Turning large valve bodies, piping components, and turbine shafts.
- Tool Rooms and Die Making: Creating precision jigs, fixtures, gauges, and dies.
Types by Capacity
All geared lathes are classified based on their capacity, directly correlating to the type of work they are intended to handle:
- Light-Duty Lathe (Toolroom Lathe): Designed for high precision, low-volume work. It has a smaller swing and bed length but features a highly accurate spindle and zero-tolerance components, ideal for precision tool making and instrument parts.
- Medium-Duty Lathe: The most common type for general engineering workshops and small-to-medium industrial production. Offers a balance of power, rigidity, and working capacity (e.g., 300mm to 600mm swing).
- Heavy-Duty Lathe: Built with a wider, more robust bed and a powerful motor to handle large, heavy workpieces (e.g., large shafts or rollers) and deep, continuous cuts. Used extensively in railway maintenance, shipbuilding, and heavy fabrication units.
- Extra Heavy-Duty Lathe (Roll Turning Lathe): Massive machines with extremely high power and rigidity, specialized for turning colossal workpieces like paper mill rollers or large industrial cylinders.
The all geared lathe, with its geared efficiency, robust construction, and manual control, secures its position as an indispensable tool – a perfect bridge between the simpler belt-driven machines of the past and the automated complexity of modern CNC technology.
