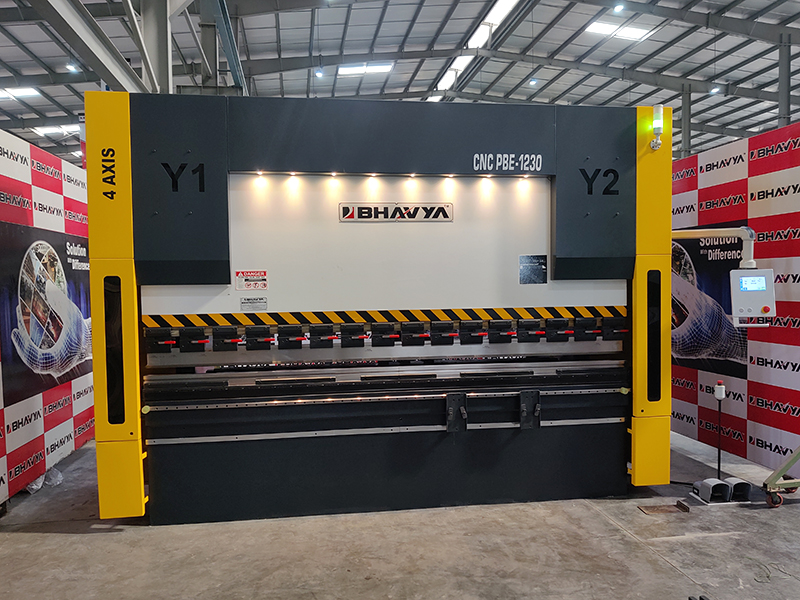

CNC press brakes play a pivotal role in metal forming, bending sheet metals with precision and consistency. Among their many capabilities, deep bending – creating sharp bends or folds in thick or long sheet metal – is essential in numerous industrial applications. To enable deep bending, modern machines integrate specializing mechanical designs, particularly focused on stroke and throat depth.
This guide delves into how CNC press brake machinesachieve deep bending by optimizing stroke length and throat depth. It explains how these mechanical features, combined with advanced tooling and hydraulic controls, enhance bending capacity while maintaining precision. For manufacturers, understanding these design elements helps in selecting the best CNC press brake machine suitable for deep bending tasks without compromising on productivity or accuracy.
What is Deep Bending in CNC Press Brake Operations?
Deep bending refers to the process where the press brake forms metal at angles requiring significant penetration or deformation depth. Unlike shallow bends, deep bends involve either large thicknesses or long metal sheets that extend further into the bending zone.
Achieving deep bends requires the press brake to travel further downward and the machine throat (the distance from the frame to the bending edge) to allow sufficient space for the metal to bend without interference. Without adequate stroke and throat depth, bending thick or long parts becomes inefficient or impossible.
Mini CNC press brakes often come with optimized stroke and throat designs that allow them to compete with larger machines in deep bending tasks, offering flexibility for smaller workshops or production lines.

Special Stroke Design: Extending the Stroke for Deep Bending
The stroke of a CNC press brake is the vertical travel distance of the ram that presses the tooling against the sheet metal. In deep bending applications, a longer stroke enables to apply bending force deeper into the sheet metal, accommodating thicker materials or larger bend radii.
Key Features of Special Stroke Design:
- Hydraulic Precision: Modern CNC hydraulic press machines use advanced servo-controlled hydraulic cylinders equipped with zero-leak PU seals. This ensures smooth, accurate movement during deep bends, maintaining consistent force and positioning.
- Stroke Control and Safety: Stroke depth is programmable in CNC press brakes, allowing operators to set precise, according to the job specifications. Safety guards and sensors ensure no over-travel occurs, preventing damage to tooling or workpieces.
This enhanced stroke capability lets the cheap CNC press brakes perform complex deep bends without the need for multiple setups or manual adjustments.
Throat Depth: Allowing Space for Larger Workpieces and Complex Bends
The throat depth refers to the horizontal distance from the machine frame to the centerline of the tooling. It defines how far the sheet metal can be fed into the press brake.
Why Throat Depth Matters for Deep Bending?
- Accommodates Larger Sheets: Greater throat depth allows bending further from the edge of the sheet, crucial for deep bends that involve long flange lengths.
- Enables Complex Geometries: Some deep bends require positioning the metal farther into the machine for multi-step or multi-angle bending. Deeper throats facilitate such operations without repositioning.
- Optimizes Workpiece Support: Combines with sliding sheet supports featuring LM guides, greater throat depth maintains the stability of larger parts during bending.
Most CNC press brake bending machines designs for deep bending feature throat depths, depending on the size and type of machine.
What Our Customers Say
“Good service. Providing full and real information before delivering the product.I purchased lathe machine and many more products from Bhavya.From Gujrat to Kashmir long distance, with proper packaging received lathe machine 100% in good condition.Worked on machine,The accuracy is too good. Thanks Team Bhavya”
Nasir Hayat On Google
Role of CNC Press Brake Tooling in Achieving Deep Bending
Tooling significantly influences the quality and feasibility of deep bending. Proper tools reduce the force required, improve bend accuracy and protect the sheet metal from defects.
Special Tooling for Deep Bends:
- Hardened B Ground Dies and Punches: These provide the necessary hardness and surface finish to endure repeated deep bending without wear. Quick-release clamps enable fast tooling changes, improving production efficiency.
- V-die Selection: Larger V-opening dies accommodate thicker materials and larger bend radii typical in deep bending.
- Multi-step Back Gauge Fingers: Mounted on linear motion (LM) guides and driven by high-speed AC servo motors, these precisely position the sheet metal for multiple bends without manual repositioning.
- Sliding Sheet Supports: Equipped with LM guides, they provide stable support for heavy or long workpieces during deep bends, preventing sagging or misalignment.
Together with the machine’s stroke and throat depth, these tooling features ensure the best CNC press brake performance for deep bending jobs.
Hydraulic System Enhancements for Deep Bending on CNC Press Machines
The hydraulic system in CNC press brakes delivers the force necessary for bending. For deep bending, hydraulic precision and power must meet higher demands.
- CNC Hydraulic Press and Hydraulic Press Machines: Use advance hydraulic cylinders with zero-leak PU seals to maintain consistent pressure during extended stroke lengths, critical for deep bends.
- Servo-driven Hydraulic Pumps: Ensure rapid response and precise positioning, avoiding pressure drops that may affect bend quality.
- Pressure Monitoring and Feedback: Integrated sensors monitor hydraulic pressure and position, allowing real-time adjustments via CNC controls for perfect bends.
These features enable CNC press brake to deliver reliable deep bending performance while protecting tooling and extending machine life.
Conclusion
At Bhavya Machine Tools, understanding how CNC press brakes achieve deep bending requires knowledge of special stroke and throat depth designs combined with advanced tooling and hydraulic systems. Whether using a small CNC press brake or a full-sized CNC hydraulic press machine, these factors define the machine’s ability to handle demanding bends with precision and speed.
Manufacturers and fabricators aiming to optimize their bending operations can benefit by prioritizing machines with enhanced stroke travel, deeper throat capacities and quality tooling designed for deep bending applications. This approach maximizes productivity, reduces setup times and improves product quality, making CNC press brakes indispensable in modern metal forming.
