Lathe Machine New Materials and Processes (Hybrid & Advanced Machining)

Introduction

The lathe machine has long been a cornerstone of precision machining, excelling in producing rotational parts such as shafts, pins, and bushings. However, as manufacturing demands have evolved, so too have the capabilities of these machines. Modern lathe machines are now expected to handle more complex geometries, tough materials, and high-speed production. To meet these challenges, advanced technologies like hybrid lathe machines, 5-axis turning centers, and advanced coolant systems (such as cryogenic and high-pressure techniques) are now being widely adopted. These innovations not only improve material efficiency and precision but also significantly reduce cycle times, driving higher productivity and quality.

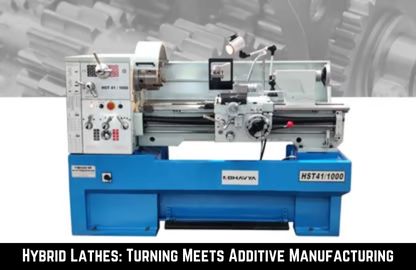

Hybrid Lathe Machines (HLM): The Convergence of Turning and Additive Manufacturing

What is a Hybrid Lathe Machine?

Hybrid Lathe Machine Advantages:

• Material Efficiency & Waste Reduction: Hybrid lathes are more material-efficient. Additive manufacturing allows material to be deposited only where needed, reducing waste and cost. This is particularly beneficial when working with expensive materials like titanium, Inconel, or super alloys.
• Complex Geometries: Hybrid machines excel at creating complex internal structures such as cooling channels, lattice designs, or intricate cavities. These features are difficult to achieve with subtractive methods alone, but with additive manufacturing, they become feasible.
• Repair and Rework: Hybrid lathes allow for the repair of damaged parts, such as turbine blades or shafts. By adding material to the worn area using additive methods and then turning it back to the original specifications, manufacturers can extend the life of expensive components.
• Fewer Setups, Higher Precision: By integrating both additive and subtractive processes in a single setup, hybrid lathes reduce the need for multiple setups, thus ensuring better alignment and tighter tolerances.

Practical Considerations of Hybrid Lathe Machine

To fully leverage hybrid lathes, manufacturers should adopt a Design for Manufacturability (DFM) approach. This means designing parts to take advantage of both additive and subtractive techniques. By understanding how both processes complement each other, manufacturers can optimize material use, reduce machining time, and improve overall part complexity.

5-Axis Turning Centers: Unlocking Complex Geometry in a Single Setup

What Are 5-Axis Turning Centers?

5-axis turning centers are machines capable of moving the tool along five different axes simultaneously: three linear axes (X, Y, Z) and two rotary axes (A and B). This capability allows for the machining of complex geometries that would typically require multiple setups or machines. By positioning the tool at any angle, the machine can access every part of the workpiece, eliminating the need to reposition or re-fixture the part.

5-Axis Turning Center Benefits:

• Single Setup Machining: 5-axis turning centers eliminate the need for multiple setups. Parts with complex features such as angled holes, undercuts, and irregular geometries can be machined in a single clamping, drastically saving time and reducing errors caused by re-orientation.
• Precision and Tolerance of Axis Turning: The ability to machine complex features in one setup reduces the chances of misalignment or tolerance stacking, leading to higher precision and better surface finishes. This is especially critical in industries like aerospace, where parts require exacting tolerances.
• Reduced Lead Time in Axis Turning: Since 5-axis machines can perform turning, milling, and drilling operations in a single setup, production lead times are significantly shortened, which is essential for industries with tight time-to-market requirements.
• Improved Productivity: The ability to perform multiple operations simultaneously increases machine uptime and reduces part handling, thereby boosting overall productivity.

Practical Tips for 5-Axis Turning Machine Optimization

• Design Parts with 5-Axis in Mind: When designing parts, it’s crucial to incorporate features that benefit from 5-axis machining, such as multi-dimensional contours or off-axis holes. This helps improve machining efficiency and reduces the need for secondary operations.
• Optimize Tool Selection in Axis Machine: The correct tooling for complex geometries is essential in fully exploiting the capabilities of a 5-axis machine. High-quality tooling can significantly reduce machining time and improve the overall quality of the finished part.

Innovations in Cryogenic Machining and High – Pressure Coolant Turning for Hard Metals

Challenges with Hard Metals

Hard metals like super alloys, titanium, and hardened steels are used extensively in aerospace, medical, and energy sectors. These materials present significant challenges because they have low thermal conductivity, meaning they generate extreme heat during cutting. This leads to rapid tool wear, poor surface finish, and even part distortion. To address these challenges, manufacturers are increasingly turning to innovative techniques like cryogenic machining and high-pressure coolant turning.

Cryogenic Machining: The Cooling Solution

Cryogenic machining involves the use of extremely cold coolant, often liquid nitrogen or CO2, applied directly to the cutting zone. This drastically reduces cutting temperatures, helping to slow tool wear and improve surface finish, particularly when machining tough materials.

In practical applications, cryogenic machining is especially beneficial in aerospace, medical, and tooling industries where high-precision parts made from super alloys or hardened steels are common. The reduced cutting temperatures help maintain material integrity and improve the overall quality of the finished parts.

Advantages of Cryogenic Machining

• Extended Tool Life: Cryogenic cooling reduces tool wear, allowing for longer tool life and fewer tool changes.
• Better Surface Finish: By maintaining a stable cutting environment, cryogenic machining results in smoother surfaces with better dimensional accuracy.
• Improved Process Efficiency: The cooling effect reduces cutting forces, leading to faster material removal and higher efficiency during operations.

High Pressure Coolant Turning: An Effective Alternative

High-pressure coolant systems use coolant delivered at very high pressures to flush chips away from the cutting zone. This helps to keep the tool cooler and improves chip evacuation, preventing overheating and reducing tool wear. High-pressure coolant is particularly effective when machining hard metals, as it addresses the extreme heat generated during cutting.

Benefits of High Pressure Coolant

• Better Chip Control: High-pressure coolant systems break up chips more effectively and prevent them from re-entering the cutting zone, which reduces the chances of part damage.
• Increased Cutting Speeds: The cooling effect of high-pressure systems allows for higher cutting speeds, improving material removal rates and overall productivity.
• Enhanced Tool Life: With better cooling and chip removal, tool life is extended, and the risk of thermal damage is minimized.

Practical Applications for Hard Metal Machining

• Aerospace: Cryogenic or high-pressure coolant turning can be used for machining turbine blades, compressor discs, and other high-precision components made from super alloys.
• Medical Devices: Cryogenic machining is used for manufacturing surgical tools and implants made from titanium and stainless steel, ensuring tight tolerances and a smooth finish.

Heavy Machinery: Components such as engine parts, bearings, and shafts made from hardened steel can be efficiently machined using high-pressure coolant systems.

Advanced Lathe Processes for Practical Guidelines

For manufacturers looking to adopt these advanced lathe techniques, here are some practical recommendations:

• Upgrade Coolant Systems: Retrofitting existing CNC lathes with high-pressure coolant systems can significantly improve machining performance, especially when working with hard materials.
• Evaluate Cryogenic Machining for High-Value Parts: Cryogenic machining is particularly beneficial for critical components made from tough materials. The higher operational costs are often justified by the extension of tool life and improved surface finish.
• Invest in 5-Axis Machines for Complex Geometries: For parts requiring complex features or multiple operations, 5-axis turning centers reduce setup times and improve part accuracy.
• Design with Hybrid in Mind: Hybrid lathes offer a way to combine additive manufacturing and turning in a single machine, allowing for complex parts with optimized material usage.
• Optimize Process Parameters: Whether using advanced coolants or hybrid machining, ensuring that tool geometry, feed rates, and cutting speeds are optimized will lead to better results in terms of part quality and machining efficiency.

Conclusion

The lathe machine remains a vital tool in modern manufacturing, but its evolution continues to advance. Innovations like hybrid lathes, 5-axis turning centers, and advanced coolant systems  including cryogenic and high pressure coolant turning offer practical benefits for industries requiring complex, high precision parts. By adopting these technologies, manufacturers can improve material efficiency, reduce lead times, and enhance the quality of their products. In competitive industrial sectors, including aerospace, automotive, medical, tooling, and heavy machinery, these advanced lathe machining solutions are key to staying ahead.
