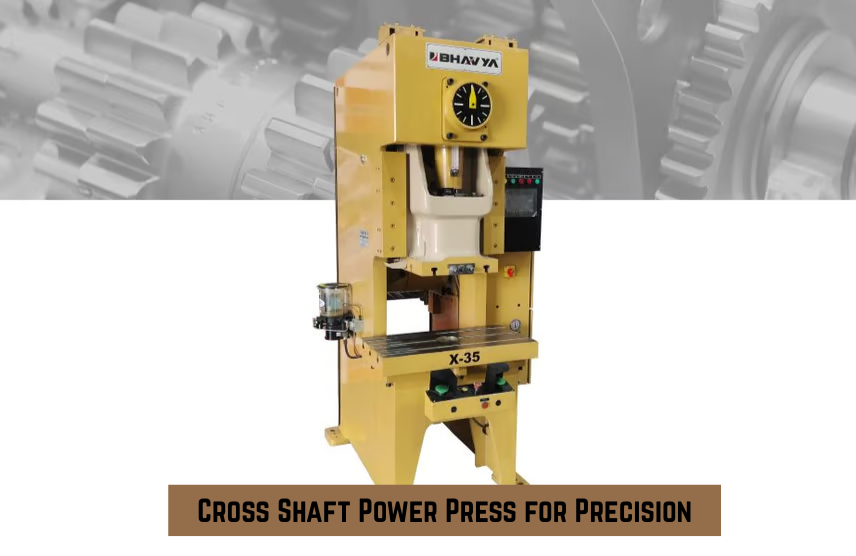

Introduction to Cross Shaft Power Press Machines and Their Benefits
The Cross Shaft Power Press is a significant advancement in metal forming technology. Often found in industries that require high precision and heavy-duty performance, this machine type plays a pivotal role in shaping metal components with excellent accuracy. It is ideal for tasks such as metal stamping, forging and sheet metal forming, which require substantial force and high-speed operations. Cross shaft press machines are known for their reliability, power and long-lasting durability, making them a popular choice in various industrial applications. This article delves into the design, functionality and various benefits of Cross Shaft Power Press Machines, emphasizing their importance in the manufacturing sector.
What makes Cross Shaft Power Press Machines different from Straight Side Power Press Machines?
When choosing between Cross Shaft Power Press and Straight Side Power Press, understanding their structural and operational differences is crucial. A cross shaft press machine utilizes a crank and cross shaft mechanism, which makes it ideal for tasks requiring high stability and precision. The shaft system provides a smooth transfer of energy, resulting in greater operational efficiency and fewer vibrations.
In comparison, a straight side power press machine relies on a rigid frame that supports higher capacities. These machines typically offer a larger working area and are better suited for heavy-duty applications. However, cross shaft presses excel in medium to high-speed production environments, offering a more compact and energy-efficient solution, especially when precision and shorter cycle times are key.
Both types of presses offer distinct benefits depending on the application. The cross shaft press is favored in industries requiring consistent, accurate and relatively fast production cycles, such as automotive, aerospace and electrical industries.
How do Cross Shaft Power Press Machines improve Metal Forming Accuracy?
The precision of a cross shaft power press machine is largely attributed to its unique drive system. The cross shaft mechanism, which includes high-accuracy transmission gears and high rigidity cranks, ensures that the force is applied consistently and evenly across the entire operation. This leads to:
- Minimal deflection and higher accuracy: The machine’s rigid frame and advanced torque system reduce deflection, which is crucial for industries that require tight tolerances in the finished product.
- Improved reliability and consistency: The cross shaft power press offers consistent force and motion, reducing any potential errors in the metal forming process.
- Longer operational life: The precision components and sturdy design contribute to the longevity of the machine, ensuring it can withstand continuous operation without compromising its accuracy.
This enhanced precision is particularly beneficial in applications like high-speed stamping, metal bending and sheet metal forming, where consistent quality is non-negotiable.
What are the key components and the working principle of a Cross Shaft Power Press Machine?
A Cross Shaft Power Press operates through a series of integrated components that work together to convert mechanical energy into the force needed to perform metal forming tasks. The key components include:
Crank and Cross Shaft Mechanism: This is the heart of the press, converting rotary motion into linear motion. The cross shaft ensures smooth power transmission, minimizing energy loss and mechanical vibrations.
High Torque Wet Clutch and Brake: The clutch system enables smooth engagement and disengagement of power, while the brake ensures rapid stopping of the ram, which is essential for precise operations.
Rigid Frame: The frame is designed to minimize deflection under high loads, ensuring stability during the press operation.
Lubrication System: A forced lubrication system with a default monitor ensures that all moving parts are adequately lubricated, reducing friction and increasing operational reliability.
Electrical Control System: The machine comes equipped with a user-friendly electric control system, making it easy to attach various accessories and control the machine’s functions with precision.
Hydraulic Overload Protection: This component ensures that the machine’s operation is not compromised in the event of a mechanical overload.
These components work in harmony to ensure that the cross shaft press machine delivers high performance, longevity and accuracy.
What Our Customers Say
“Good service. Providing full and real information before delivering the product.I purchased lathe machine and many more products from Bhavya.From Gujrat to Kashmir long distance, with proper packaging received lathe machine 100% in good condition.Worked on machine,The accuracy is too good. Thanks Team Bhavya”
Nasir Hayat On Google
How do you select the right Cross Shaft Power Press Machine for your workshop?
Choosing the right cross shaft power press machine for your workshop requires careful consideration of several factors:
Production Volume and Speed: If your operations require high-speed, continuous production, a high-speed cross shaft press would be a better option. On the other hand, if the volume is lower, a machine with slightly lower speed but greater precision may suffice.
Capacity and Force Requirements: Evaluate the size of the components you need to form and the amount of force required. Heavy-duty applications may call for a heavy-duty cross shaft machine, while lighter tasks can be handled with a more compact, less powerful press.
Material Type: Different materials, like Bakelite, metal alloys or plastics, require different pressure settings. Make sure to choose a press that can handle the material characteristics of your operations.
Customization Options: Some workshops may need specific features, such as pneumatic die cushions, hydraulic overload protectors or quick die change devices for efficient and safe operation. Consider the accessories available for the machine and choose those that align with your operational needs.
Maintenance and Durability: A cross shaft mechanical press is designed to last, but choosing one with a proper maintenance system, such as a lubrication system or pressure monitoring system, can help ensure that your machine performs efficiently for years.
By considering these factors, you can select a cross-shaft power press that best suits the scale, speed and precision of your workshop operations.
Conclusion
The Cross Shaft Power Press Machine is a powerful, versatile and efficient tool for various industries that require high precision and heavy-duty force for metal forming tasks. With its robust design and ability to perform at high speeds, it offers several benefits over other machine types, including improved accuracy, reduced vibration and consistent performance. Whether you are in the automotive, aerospace or manufacturing industry, investing in the right cross shaft press machine can significantly enhance your production efficiency and product quality.
FAQs
What are the advantages of a Cross Shaft Power Press compared to a Straight Side Power Press?
The cross shaft power press is generally more compact, offers higher speed and provides better precision for medium-duty operations, making it ideal for industries that prioritize accuracy and high-speed production.
How does a Cross Shaft Power Press improve the accuracy of metal forming?
The cross-shaft mechanism ensures smooth power transmission, minimizing deflection and vibrations, which results in high precision and consistent quality in the metal forming process.
What key components contribute to the functionality of a Cross Shaft Power Press Machine?
The main components include the crank and cross shaft mechanism, wet clutch and brake system, rigid frame, lubrication system and electrical control system, all of which work together to ensure the machine operates smoothly and efficiently.
How do I choose the right Cross Shaft Power Press Machine for my needs?
Factors to consider include production volume, required force, material type, available customization options and the machine’s maintenance system. Choosing the right machine will depend on the specific needs of your workshop and production requirements.
What industries benefit the most from using Cross Shaft Power Press Machines?
Industries such as automotive manufacturing, aerospace, electrical industries and heavy metal forming benefit significantly from cross shaft power presses due to their ability to handle large volumes of production with high precision.
