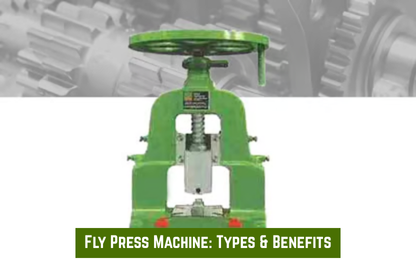

A Fly Press Machine is a versatile piece of equipment commonly used in metalworking and manufacturing industries. These machines offer high precision and efficiency for a range of operations such as punching, bending, straightening and riveting. There are different types of fly press machines, each designed to cater to specific needs based on their construction and operational capacity.
This article explores the various types of Fly Press Machines – specifically, the Steel Body Fly Press, Single Body Fly Press and Double Body Fly Press – along with their applications, benefits and key considerations for businesses looking to integrate these machines into their operations.
What is a Steel Body Fly Press Machine and How Does it Work?
A Steel Body Fly Press Machine is a type of mechanical press used in metalworking for forming, shaping and punching operations. The machine typically consists of a steel body frame, which provides strength and durability during heavy-duty operations. The machine works by using a flywheel mechanism that stores energy and releases it in a controlled manner to apply force to the workpiece.
How it Works:
The flywheel is driven by a handle or motor, creating rotational energy. This energy is stored and then released in a single, powerful stroke to perform a variety of tasks like punching, bending, embossing or straightening metal pieces. The energy stored in the flywheel helps generate enough force to shape the metal, making it suitable for both light and medium-duty applications.
Advantages of Using a Steel Body Fly Press Machine in Metalworking
The Steel Body Fly Press Machine is widely favored for its robustness and precision. Here are the key advantages it offers in metalworking:
Durability and Strength:
The steel body construction ensures that the machine can withstand significant force during operation, making it suitable for heavy-duty tasks and providing longevity.
Cost-Effective:
Steel body presses are generally more affordable compared to hydraulic or pneumatic presses, making them an economical choice for businesses with moderate production needs.
Precision:
These machines are capable of producing precise and repeatable results, especially for tasks that require consistent force application, such as punching holes or bending metal sheets.
Energy Efficiency:
By utilizing a flywheel mechanism, the machine stores energy during operation and releases it as needed, improving energy efficiency compared to other mechanical systems.
Key Features and Applications of Steel Body Fly Press Machines
Key Features:
- Robust Construction: The steel body provides superior strength and stability.
- Manual or Motorized Operation: These machines can be manually operated or motorized, depending on the production volume and application requirements.
- Adjustable Stroke: The stroke length can be adjusted for different applications, offering versatility in operations.
Applications:
- Punching: Used for creating holes in metal sheets.
- Bending: Ideal for forming metal pieces into desired shapes.
- Pressing: Commonly used in manufacturing components like brackets, plates and fasteners.
- Straightening: Helps straighten bent metal components for further use.
Maintenance Tips for a Long-Lasting Steel Body Fly Press Machine
Proper maintenance is crucial for maximizing the lifespan and performance of a steel body fly press machine. Here are some tips:
Regular Cleaning:
Clean the machine regularly to remove dirt, oil and metal shavings, which can affect performance and cause wear over time.
Lubrication:
Ensure that all moving parts, including the flywheel and gears, are adequately lubricated to prevent friction and wear.
Inspect the Flywheel:
Periodically check the flywheel for any signs of wear or damage. A properly functioning flywheel is essential for optimal force delivery.
Check for Alignment:
Ensure that the machine components are aligned to prevent unnecessary strain and to maintain precision during operation.
What Our Customers Say
“Bhavya Machine Tools is one of the best tools manufacturer in india and our company has a long term association with them. Whenever we need any tools for our manufacturing facility, Bhavya Machine is always our first choice they always provided high quality products to us.”
Bushra Laliwala On Google
Introduction to Single Body Fly Press Machines – Design and Benefits
The Single Body Fly Press Machine is a compact and efficient machine typically used for light-duty operations. It features a single-body design, meaning the main frame, working components and flywheel are integrated into one solid unit. This design is especially beneficial for small-scale operations and workshops.
Design:
The single body structure provides a smaller footprint and makes the machine easier to handle. The integration of the flywheel within the body ensures that energy is transferred efficiently during each stroke.
Benefits:
- Compact Design: Ideal for spaces with limited room.
- Ease of Operation: The machine can be manually operated, making it simple for operators to control.
- Affordable: Single body fly presses are typically more affordable than larger, more complex machines.
How a Single Body Fly Press Machine is Used in Light Metal Operations
Single body fly presses are commonly used for light metal operations such as punching, bending and forming thin metal sheets. These machines are capable of delivering precise pressure without causing significant deformation of the metal, making them ideal for delicate tasks like creating components for electronics or small automotive parts.
Comparison Between Single Body and Double Body Fly Press Machines
When choosing between a single body and a double body fly press machine, it’s important to understand their differences:
- Single Body Fly Press: Ideal for light-duty, low to medium-force applications. Suitable for smaller production runs and more straightforward tasks.
- Double Body Fly Press: Designed for heavy-duty operations. This machine is more powerful, capable of handling larger, thicker materials and high-force applications, making it suitable for industries requiring higher precision and force.
What Makes a Double Body Fly Press Machine Suitable for Heavy-Duty Tasks?
The double body fly press machine features a dual-frame design, providing enhanced strength and stability. This makes it ideal for heavy-duty applications such as thick sheet metal bending, heavy punching and forming large parts. The additional structural support allows it to handle larger forces without compromising precision.
Advantages of Double Body Fly Press Machines in Precision Manufacturing
For precision manufacturing, the double body fly press provides several advantages:
Increased Force: Capable of delivering higher forces for more robust operations.
Enhanced Stability: The dual-frame design ensures the machine remains stable during operation, preventing unwanted movement.
Greater Precision: The design minimizes distortion and allows for highly accurate welding, forming or punching.
Choosing Between Single and Double Body Fly Press Machines – Which is Right for You?
The choice between single body and double body fly press machines depends on the nature of the work. If your operations require light to medium pressure with less complexity, a single body fly press machine is the ideal choice. However, for heavy-duty operations involving large, tough materials or high precision, a double body fly press machine would be the better option.
Maintenance and Troubleshooting Tips for Double Body Fly Press Machines
To keep your double body fly press machine operating smoothly, consider these tips:
Inspect and Tighten Bolts Regularly: Due to the machine’s high force, bolts and other fasteners may loosen over time, so ensure everything is secure.
Lubricate the Flywheel: Make sure the flywheel is well-lubricated for efficient energy transfer and smooth operation.
Check the Frame for Alignment: Misalignment can lead to uneven pressure and wear, so regular checks are important.
Applications of Double Body Fly Press Machines in the Engineering Industry
Double body fly press machines are commonly used in the engineering industry for tasks that require high force and precision. Common applications include:
- Heavy-duty punching and cutting of metal plates
- Bending and forming thick materials
- Manufacturing automotive parts like brackets and frames
- Welding and assembly of heavy components
Conclusion
Fly press machines, whether steel body fly presses, single body fly presses or double body fly presses, offer a wide range of capabilities suitable for different applications in metalworking. The right choice of fly press machine depends on the type of work you are performing, the required force and the precision needed.
By understanding the various types of fly press machines, their benefits and applications, businesses can select the machine that best meets their needs, improving productivity and ensuring high-quality results in their operations.
